Micro ATX

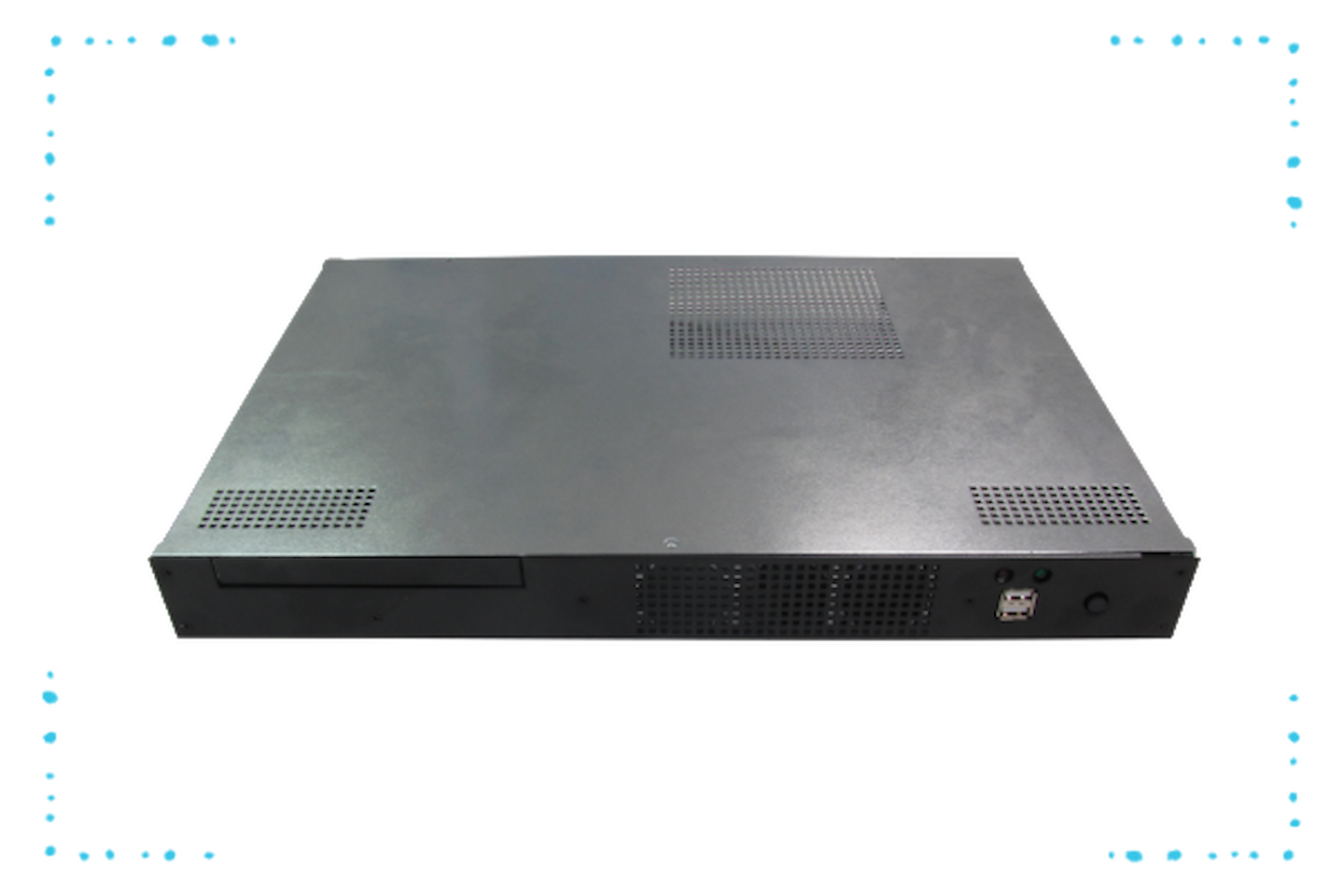

Industrial 1U rackmount chassis EMKO designed for standard micro ATX motherboards (up to 244 x 244 mm). The 305 mm deep chassis offers variable internal positions for 3.5" or 2.5" drives, one external slim bay, and one PCI slot. Service includes free custom-made low-profile I/O shield for your specific motherboard.

Product Descriptions

Description:

1U / 19"
Dimensions (W x D x H): 435 x 305 x 46 mm
Color: Black front panel

External bays:

1x slim 5.25"

Internal bays:

1x 3.5" or 2x 2.5"
MB: 244 x 244 mm micro ATX form factor
PCI slot: 1x
Expansion card: 1x 32-bit 1-slot PCI (optional)

Front panel:

Power button
Power LED
HDD LED
2x USB

Net weight: 3 kg

Gross weight: 3.5 kg

Single carton dimensions: 520 x 360 x 100 mm

When ordering, please specify your motherboard model so we can manufacture a custom low-profile I/O shield for you. The original I/O shield cannot be used in a 1U chassis! This service is provided free of charge.
