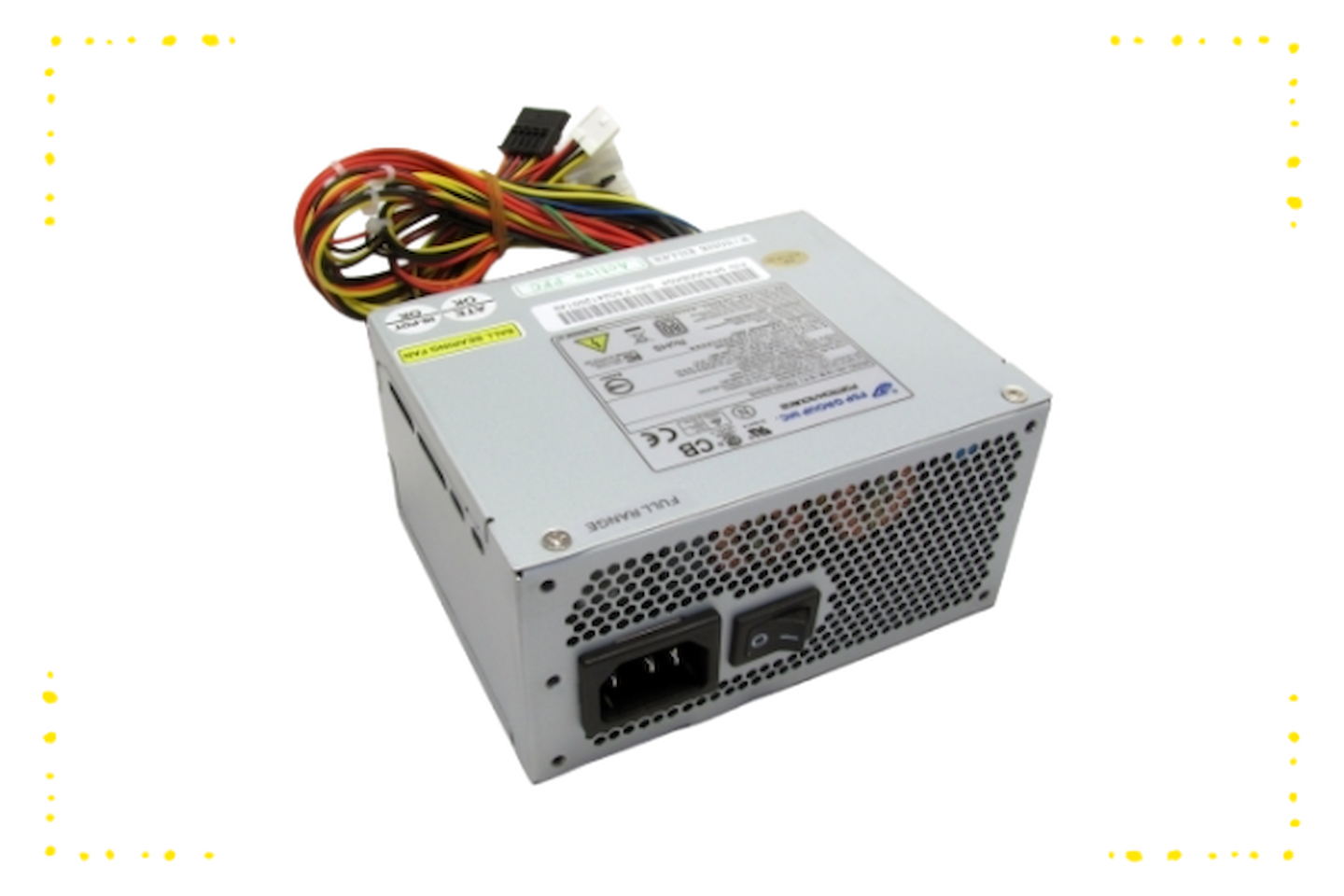

FSP300-60GHS SFX Power Supply

The FSP300-60GHS is a highly efficient 300W SFX power supply designed for compact PC builds and industrial applications. Featuring active PFC, a temperature-controlled cooling fan, and comprehensive safety protections (OVP, OCP, SCP), it delivers stable and reliable performance in a space-saving 100mm form factor.

Product Description

PC Power Supply Unit (PSU)

  • Dimensions: (D x W x H): 100 x 125 x 63.5 mm
  • Cooling: Temperature-controlled fan speed regulation for optimized operation.

Technical Specifications

  • Input Voltage: 100–240 VAC
  • Total Output: 300W
  • Efficiency: >80%
  • PFC: Active Power Factor Correction (PFC)
  • DC Outputs: +12V1: 14A, +12V2: 16A, +5V: 22A, +3.3V: 20A, -12V: 0.5A, +5VSB: 2.5A


Protection (OVP, OCP, SCP)

  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • SCP (Short Circuit Protection)

Connectors

  • 1 x 20+4-pin Mainboard
  • 1 x P4 (12V) CPU connector
  • 2 x SATA
  • 3 x PATA (Molex)
  • 1 x FDD

Warranty 24 months.
